The Forgotten Vacuum Tube Train Systems
The Forgotten Vacuum Tube Train Systems – Long before electric high-speed rail and futuristic transportation concepts captured public imagination, engineers experimented with something that felt almost magical at the time. Instead of locomotives burning coal or engines pulling heavy wagons, some visionaries believed trains could move simply by manipulating air pressure.
This idea became known as the vacuum tube railway. During the 19th century, it briefly looked like the future of transportation. Engineers built experimental systems, governments invested money, and newspapers predicted a new era of silent, fast travel. Yet today, very few people remember that vacuum-powered trains once operated in real cities.
Understanding the story of these forgotten systems reveals how bold engineering ideas can shape transportation innovation, even when they disappear from the mainstream.
How Vacuum Tube Train Systems Worked
The basic concept behind vacuum tube trains was surprisingly simple. Instead of a locomotive pulling railcars, engineers used air pressure differences inside a sealed tube.
A long pipe or tunnel ran alongside the railway track. Inside this tube sat a piston connected to a train carriage outside the pipe. Powerful pumping stations removed air from one side of the tube, creating a vacuum. Meanwhile, normal atmospheric pressure remained behind the piston.
Because air naturally pushes toward low pressure, the higher pressure behind the piston forced it forward through the tube. As the piston moved, it pulled the attached train carriage along the tracks.
In theory, this design offered several advantages. It eliminated the need for heavy steam engines, reduced fuel consumption, and promised smoother travel. Engineers believed the system could move passengers quickly while producing far less noise and smoke than steam locomotives.
During the early industrial age, when coal smoke filled cities and rail technology was still evolving, the vacuum tube railway looked like a clean and modern alternative.
The Engineering Vision of Isambard Kingdom Brunel
One of the most famous engineers connected to vacuum railway experiments was Isambard Kingdom Brunel. Known for bold infrastructure projects across Britain, Brunel supported the idea of atmospheric railways during the 1840s.
He helped develop the South Devon Atmospheric Railway, which used air pressure propulsion along parts of the railway line. Pumping stations placed every few kilometers created the vacuum that powered the trains.
At first, the system seemed promising. Early test runs showed that trains could move efficiently without traditional locomotives. Observers praised the smooth ride and innovative design.
However, real-world conditions quickly revealed problems that engineers had underestimated.
Early Experiments With Atmospheric Railways
Several countries experimented with vacuum-powered railways during the mid-1800s. These projects aimed to demonstrate that air pressure propulsion could work on a large scale.
One early example appeared in Ireland with the Dalkey Atmospheric Railway near Dublin. The short route successfully carried passengers for several years and became a popular attraction. Visitors were fascinated by the idea of trains moving without visible engines.
In England, the South Devon line became the most ambitious atmospheric railway project. Engineers constructed pumping stations along the route to maintain the pressure system required to move trains through the pipes.
France also explored similar technology, with experimental lines testing vacuum propulsion for passenger transport.
For a brief moment, the technology seemed to gain momentum. Investors believed atmospheric railways might replace steam locomotives entirely.
But the technology’s weaknesses soon became difficult to ignore.
Why Vacuum Tube Railways Failed
Despite the initial excitement, vacuum-powered rail systems faced major engineering challenges.
One of the biggest problems involved sealing the long tube that contained the moving piston. A continuous slot ran along the top of the pipe so the piston could connect to the train outside. Engineers attempted to seal this opening using leather valves coated with grease.
Unfortunately, weather conditions quickly damaged these seals. Rain, temperature changes, and general wear caused leaks in the system. Once air leaked into the tube, the pressure difference weakened, reducing the force pushing the piston.
Maintenance costs also grew rapidly. Pumping stations required constant operation, and repairing the tube seals demanded frequent manual labor.
Another unexpected issue came from wildlife. Rats reportedly chewed on the leather valves, creating additional leaks and making the system even harder to maintain.
Because of these challenges, atmospheric railways became expensive to operate. Traditional steam locomotives, although noisy and smoky, proved far more reliable.
By the late 1840s, most vacuum railway projects had been abandoned.
The Legacy of Vacuum Transportation Concepts
Even though atmospheric railways disappeared, the underlying idea of moving vehicles through controlled air pressure never truly vanished.
In fact, modern transportation concepts borrow heavily from those early experiments.
The idea of sending vehicles through tubes to reduce resistance appears in contemporary proposals for ultra-high-speed transportation. Engineers continue to explore ways to reduce air drag and improve efficiency using enclosed travel systems.

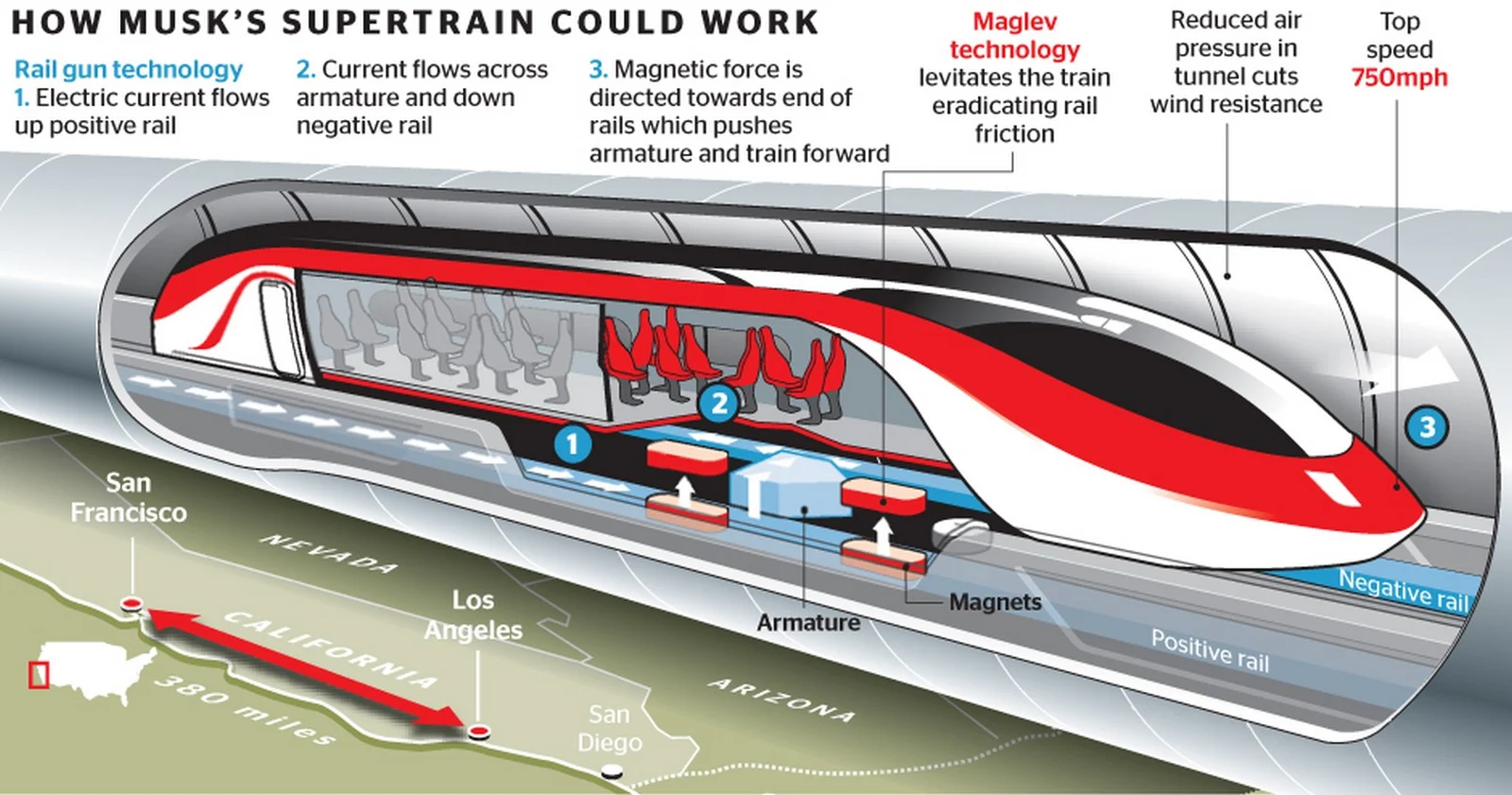

Some modern designs envision passenger pods traveling through low-pressure tubes at extremely high speeds. While the technology and materials are far more advanced today, the core concept echoes the same principles that engineers tested nearly two centuries ago.
These early vacuum railway systems can therefore be seen as the ancestors of modern tube-based transportation ideas.
Lessons From 19th Century Innovation
The story of atmospheric railways highlights several important lessons about technological innovation.
First, bold ideas often appear long before the tools exist to make them practical. Engineers in the 1800s had the vision but lacked modern materials, advanced sealing systems, and efficient vacuum technology.
Second, infrastructure experiments sometimes fail but still influence future designs. Many transportation breakthroughs build upon earlier attempts that never reached commercial success.
Finally, forgotten engineering projects remind us that progress rarely follows a straight path. Some technologies vanish for decades before returning in new forms.
Why These Systems Matter Today
Today, historians and transportation enthusiasts continue to study vacuum tube railway experiments because they represent a fascinating chapter of engineering history.
They show how creative thinkers tried to solve real problems of their time, such as pollution from coal engines and inefficient transportation networks.
More importantly, these forgotten systems demonstrate that many modern transportation ideas have deeper historical roots than people realize.
Concepts that seem futuristic today were already being tested by engineers more than 150 years ago.
While atmospheric railways never became the dominant form of travel, they helped expand the boundaries of what engineers believed possible.
And in many ways, the dream of moving people quickly through controlled tubes still lives on, waiting for technology to finally catch up with the imagination of those early innovators.
The Enduring Curiosity Around Vacuum Railways
Although the original systems disappeared, the mystery and curiosity surrounding vacuum tube train systems continue to capture attention. Historians often rediscover these projects when studying the evolution of railway technology.
Old pumping stations, abandoned infrastructure, and historical records reveal just how serious the experiments once were. Engineers and investors believed they were building the future of transportation.
Today, these forgotten vacuum train systems serve as a reminder that innovation often includes bold experiments, unexpected failures, and ideas that may return decades later in completely new forms.
In the world of transportation history, the atmospheric railway stands as one of the most intriguing examples of an invention that was simply ahead of its time.
